Medical GR.2/GR.3/GR.4/GR.1 Titanium Implantable Sheet for Medical
Description
Reviews
Introduction

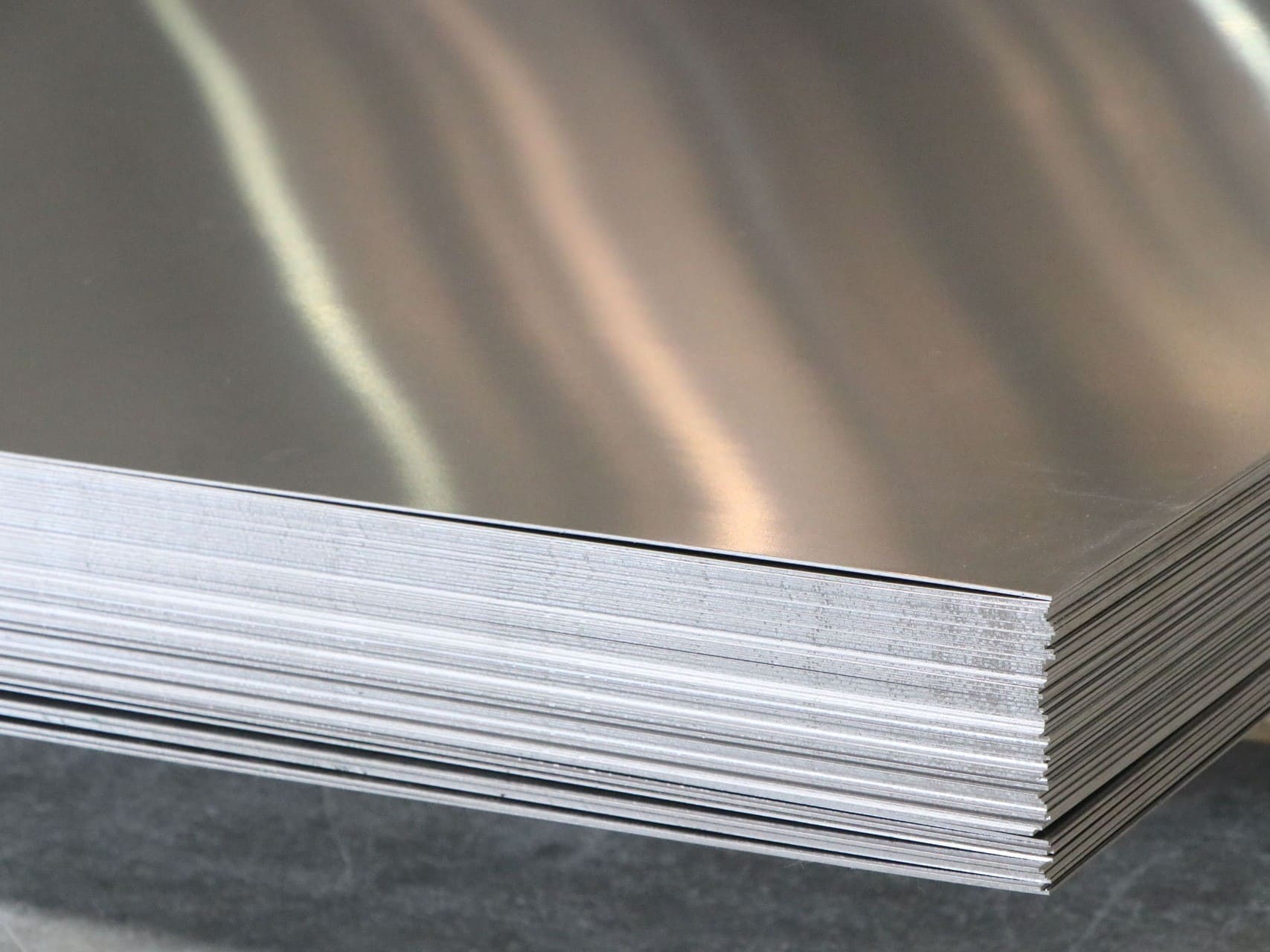

The Medical GR.2 / GR.3 / GR.4 / GR.1 Titanium Implantable Sheet from JH-MEDICAL is manufactured from commercially pure titanium grades with excellent mechanical properties and outstanding biocompatibility. Produced under ISO13485 and ISO9001 certified systems, these sheets are widely used in medical and surgical applications requiring lightweight, corrosion-resistant, and tissue-friendly materials. Each grade offers a balance between strength and formability to meet diverse medical fabrication needs.
Features
- Manufactured from CP Titanium Grades 1–4 (GR.1, GR.2, GR.3, GR.4).
- Complies with ASTM and ISO standards for implantable titanium materials.
- Outstanding corrosion resistance and excellent tissue compatibility.
- Lightweight and easy to form, weld, and machine for custom implant designs.
- Different grades available — from highly ductile (GR.1) to high strength (GR.4).
- Produced under ISO13485 and ISO9001 certified medical manufacturing systems.
Product Data
| Item | Details |
|---|---|
| Product Name | Medical GR.2 / GR.3 / GR.4 / GR.1 Titanium Implantable Sheet for Medical |
| Place of Origin | China |
| Brand Name | JH-MEDICAL |
| Certification | ISO13485, ISO9001 |
| Model Number | GR.2 / GR.3 / GR.4 / GR.1 |
| Material | Commercially Pure Titanium (Grades 1–4) |
| Standard | ASTM F67 / ISO 5832-2 |
| Thickness | 0.5mm – 10mm (customizable) |
| Width | ≤1000mm (custom sizes available) |
| Length | ≤2000mm (cut-to-size service) |
| Surface Finish | Pickled / Polished / Bright / Sandblasted (optional) |
| Mechanical Properties | Varies by grade – tensile strength from 240 MPa (GR.1) to 550 MPa (GR.4) |
| Packing | Vacuum sealed, plastic wrapped, and packed in export wooden boxes |
| Inspection & Test | Mechanical test, chemical composition analysis, ultrasonic & surface inspection |
Application
The Medical Titanium Implantable Sheet is widely applied in orthopedic implants, cranial plates, trauma fixation components, dental frameworks, and surgical instruments. Thanks to its combination of light weight, high strength, and excellent tissue compatibility, it is ideal for applications requiring durable, bio-inert, and corrosion-resistant materials in direct contact with the human body.
