ASTM F1295/ISO5832-11 Ti-6Al-7Nb Titanium SHEET
Description
Reviews
Introduction

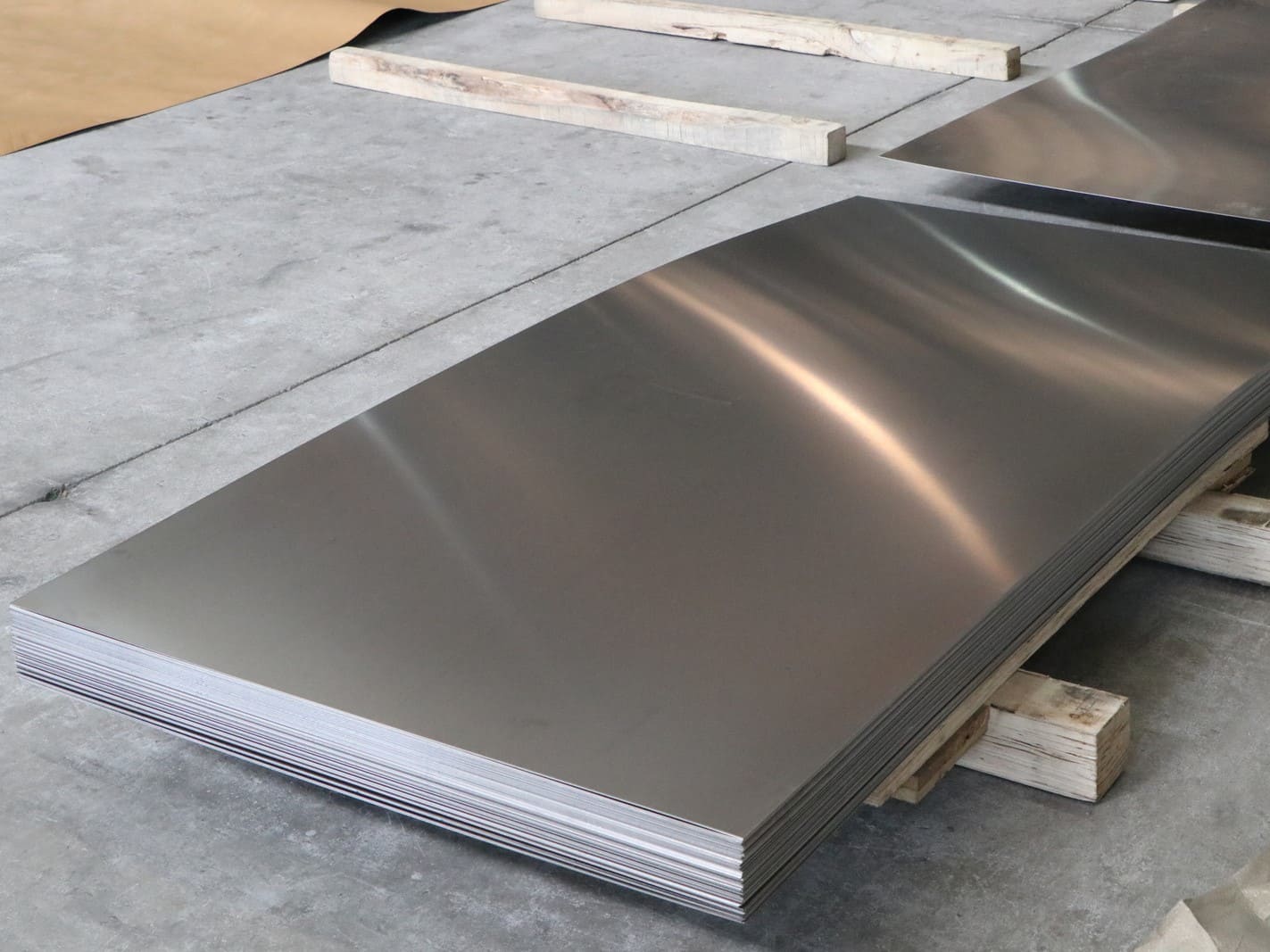

The ASTM F1295 / ISO5832-11 Ti-6Al-7Nb Titanium Sheet from JH-MEDICAL is a premium implant-grade titanium alloy designed to meet the highest standards of biocompatibility, corrosion resistance, and mechanical strength. Produced under ISO13485 and ISO9001 certified systems, this alloy replaces vanadium with niobium, ensuring excellent tissue compatibility and reducing potential cytotoxicity. It is widely used in orthopedic, dental, and trauma implants requiring superior reliability and long-term performance.
Features
- Complies with ASTM F1295 and ISO5832-11 standards for Ti-6Al-7Nb implant materials.
- Enhanced biocompatibility through niobium substitution for vanadium.
- Excellent resistance to corrosion and fatigue in physiological environments.
- High mechanical strength and stability with fine microstructure control.
- Suitable for deep forming, machining, and surface modification processes.
- Manufactured under ISO13485 and ISO9001 certified quality management systems.
Product Data
| Item | Details |
|---|---|
| Product Name | ASTM F1295 / ISO5832-11 Ti-6Al-7Nb Titanium Sheet |
| Place of Origin | China |
| Brand Name | JH-MEDICAL |
| Certification | ISO13485, ISO9001 |
| Model Number | Ti-6Al-7Nb |
| Material | Ti-6Al-7Nb (Titanium Alloy) |
| Standard | ASTM F1295 / ISO 5832-11 |
| Thickness | 0.5mm – 10mm (custom sizes available) |
| Width | ≤1000mm (customizable) |
| Length | ≤2000mm or per customer specification |
| Surface Finish | Pickled / Polished / Bright / Sandblasted (optional) |
| Mechanical Properties | Tensile strength ≥ 860 MPa, Yield strength ≥ 795 MPa, Elongation ≥ 10% |
| Heat Treatment | Annealed per ASTM F1295 specification |
| Packing | Vacuum-sealed, plastic wrapped, and packed in export wooden boxes |
| Testing & Inspection | Chemical composition analysis, mechanical testing, ultrasonic inspection, and surface examination |
Application
The Ti-6Al-7Nb Titanium Sheet is widely used in the production of orthopedic plates, spinal fixation systems, dental implants, trauma fixation devices, and surgical instruments. Its superior strength, corrosion resistance, and biocompatibility make it ideal for applications requiring long-term implantation and direct contact with body tissue and fluids.
